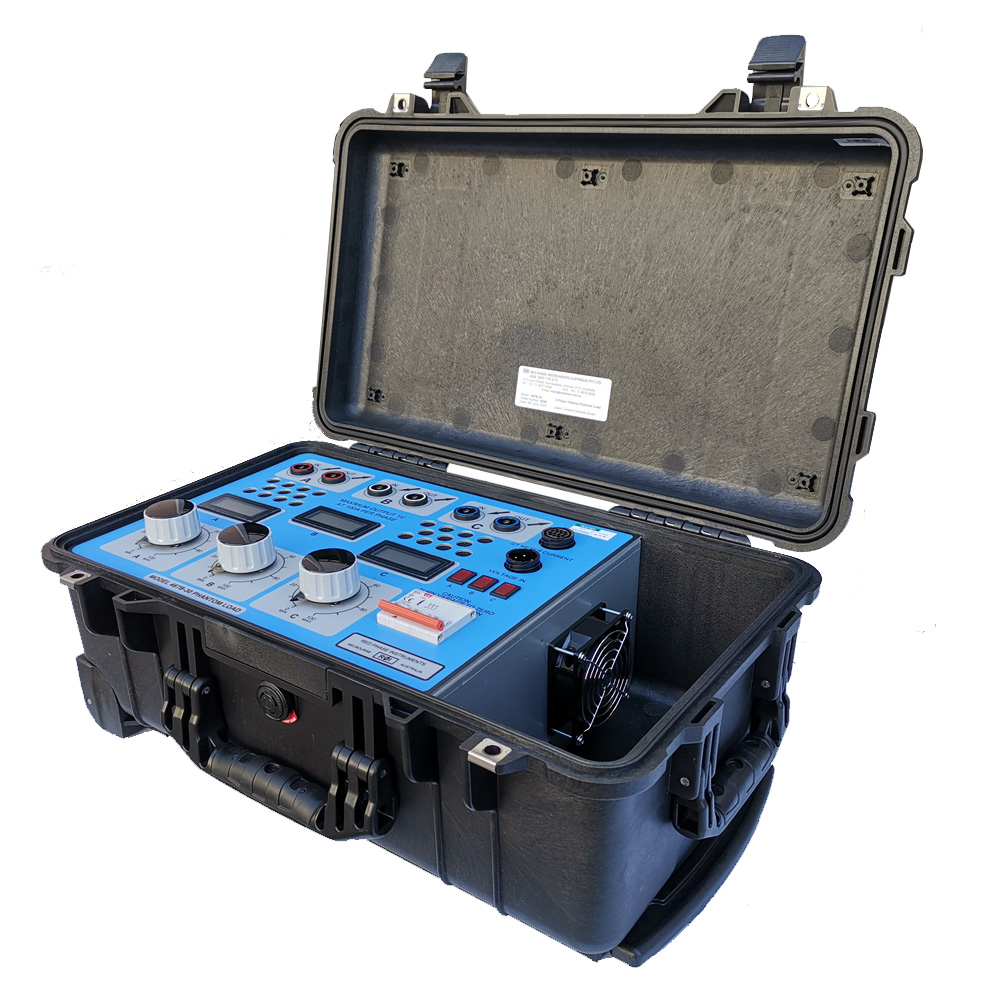

This 3 phase phantom load is used for energising either
CT or Direct connected Energy meters during
commissioning or routine testing.
The 467B-30 can deliver over 100VA per phase at 100Amps / 1V.
“Variacs” are used to adjust the current injection level
from zero to full scale.
Each phase has a dedicated display showing the
instantaneous current level to 1 decimal place
Shrouded safety plugs and sockets are used to connect
the cables to the front panel.
The input required is 240V/415V 3 phase, 4 wire and
this is protected with a 3 pole circuit breaker.
Please contact us for the latest information
regarding this product.
