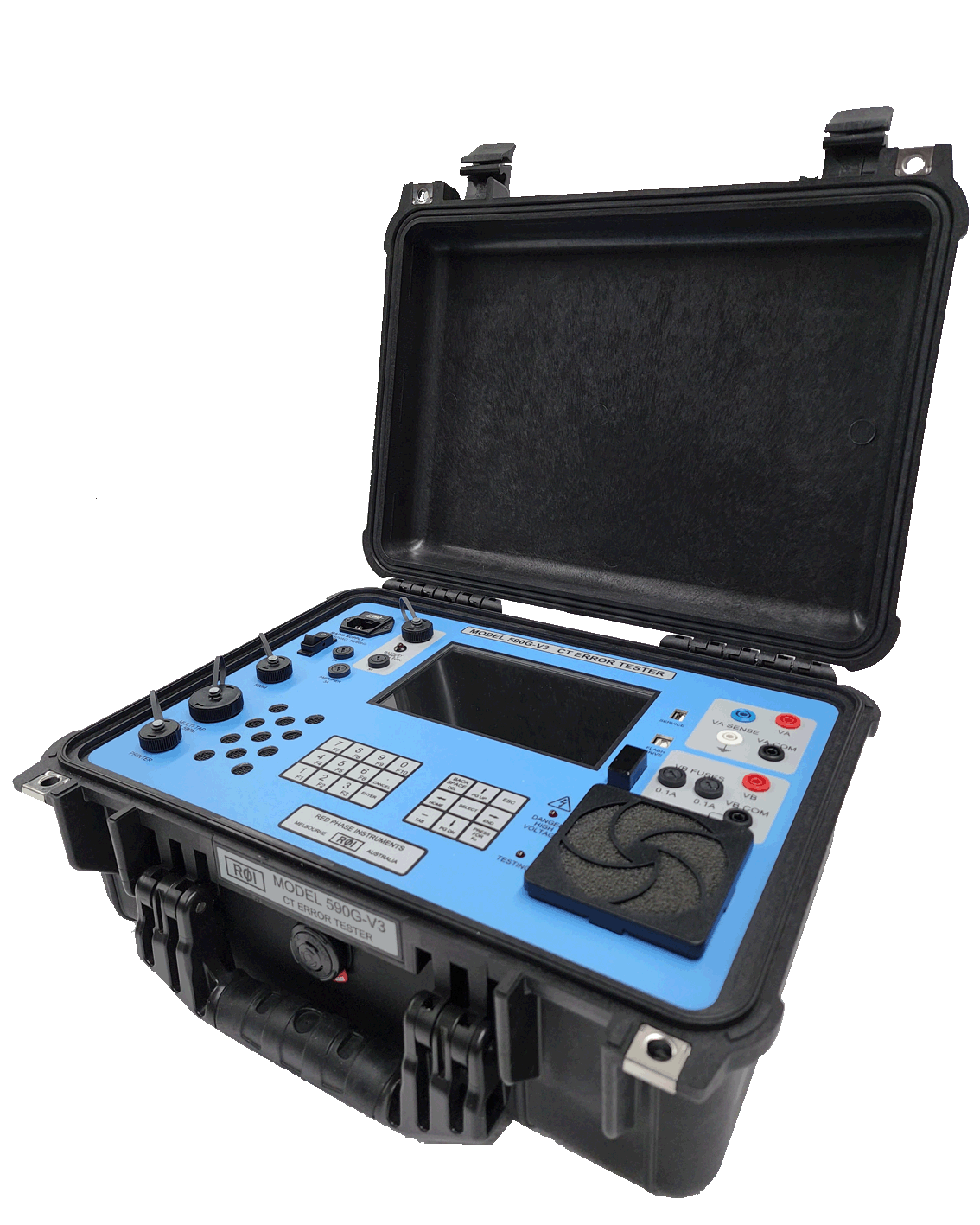

Following feedback from our users, our Model 590G-V3 is the latest version of this successful and well proven CT error tester. The 590G-V3 has all the features and advantages of the previous models with additional testing features, better accuracy and smaller size and weight.
Since 1999, Red Phase Instruments has led the way in the manufacture of portable CT error testing equipment.
Our portable analysis method has allowed utilities around the world to test their metering CTs easier and faster than using bulky traditional methods without jeopardizing accuracy.
Following feedback from our users, our Model 590G-V3 is the latest version of this successful and well proven CT error tester.
The 590G-V3 has all the features and advantages of the previous models with additional testing features, better accuracy and smaller size and weight.
In a world where cost control is gaining importance, this CT tester not only lowers testing costs by being simple, fool-proof and fast. It also allows utilities to pursue the very important (yet at many times forgotten) task of testing installed CTs for detecting tampering, and minimizing losses due to faulty CTs.
It features the following offline test capabilities:
– Burden based CT ratio and phase error measurements
to an accuracy of 0.02%
– Excitation measurements for most metering Class CTs
– CT secondary winding resistance
– CT 1.6 kHz Admittance test
– CT and PT Burden test
– CT and PT polarity check
– Batch testing of metering CTs
– No name plate CT Class Estimation
– Record download to USB Flash or optionally via Bluetooth to an
Android tablet or phone.
– Remote control via Bluetooth
– Multitap, option for a 5 ratio metering CT
