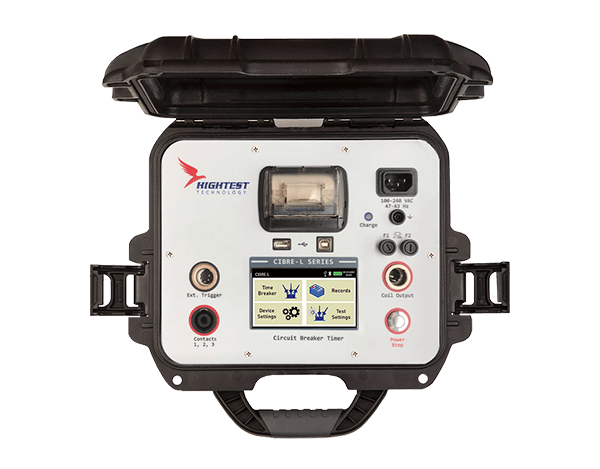

CIBRE-L3 Series, 3-Contact Circuit Breaker Timer with Built-in Printer

CIBRE-L3 Series, 3-Contact Circuit Breaker Timers are designed using advanced engineering technology to test contact timings of circuit-breakers.

CIBRE-L3 Series have fast, easy and accurate measurement features by its user-friendly software.

CIBRE-L3 Series are battery-powered devices (optional feature), which allow users to perform tests even without power supply during field tests.

Why do we need to test circuit breakers?

It is very important to test circuit breakers regularly. Contact Timing Tests are performed to determine the optimal performance of the breakers.

The testing can determine improper breaker operations in case of system fault and to improve system reliability.

Contact Timing Tests

Contact timing tests are performed to compare the breakers’ main & resistor contact performance against the manufactures specifications.

The breakers OPEN, CLOSE, OPEN-CLOSE, CLOSE-OPEN and OPEN-CLOSE-OPEN operations are timed in milliseconds (ms) and cycles and then compared with the manufacturers’ specification to determine the performance of the circuit breaker.

CIBRE-L3 Series feature with a 4.3-inch large colour touch display, which is visible under both bright sunlight as well as dim light conditions.

Operators can easily print the measurement results with the 2.25-inch built-in printer of CIBRE-L3 Series.

The results can also save to a USB flash drive or to the device’s internal memory.

Multi-language capability and user-friendly operation menu make it easy to control CIBRE-L3 Series.

CIBRE-L3 Series devices are light-weight, compact and rugged with the protection of IP67 (case closed) which makes it perfect for the field test.

Features

• Contact Timing (O, C, O-C, C-O & O-C-O)
• 3 Dry Contact Inputs
• Timing Accuracy: 0.05% rdg ± 0.1 ms
• Timing Windows: 1s, 10s & 20s
• Contact Detection Range: Closed ≤20 Ω &
• Open ≥5000 Ω
• Optional Battery
• Optional Bluetooth Communication
• 2.25” Built-in Printer
• 4.3” TFT Touch Colour Display
• Lightweight and Portable
• Protection Class IP67 (case closed)

Technical Specifications

Measurement Parameters	Contact Timing (O, C, O-C, C-O & O-C-O)
Dry Contact Inputs	3 dry input channels (each detects main)
Timing Windows	1s, 10s, 20s
Timing Resolution	1 s duration	10 s duration	20 s duration
	± 50 µs	± 500 µs	± 1 ms
Timing Accuracy	0.05% rdg ± 0.1 ms
Dry contact channel protection	Fuses and Diodes protection, All contacts grounded until test
Contact detection range	Closed	≤20 Ω
	Open	≥5000 Ω
Resistor detection range	20Ω – 5000Ω
Trigger input voltage	24 – 300 V DC or ACpeak
Dry contact input protection	Diode Protection/ ESD
Breaker Operations	OPEN, CLOSE, OPEN-CLOSE, CLOSE-OPEN, OPEN-CLOSE-OPEN
Breaker Initiate Capacity	20 A, 300 V DC or ACpeak
Initiate current reading range	0 – 20A DC, 5 kHz
Input Power	100-240 V,  47/63 Hz
Battery	Yes, 14.4 V 3.45 Ah ( Optional; Models: CIBRE-L3B & CIBRE-L3B BLUE)
Display	4.3-inch Colour Touch Display
Memory	Up to 200 records
Communication	USB 2.0/1.1 Standard-A, USB 2.0/1.1 Standard-B  Bluetooth (Factory install option; Models: CIBRE-L3 BLUE & CIBRE-L3B BLUE)
Printer	2.25-inch Built-in Printer
Dimensions	12.5″ x 10.1″ x 6.0″  (318 mm x 257 mm x 152 mm )
Weight	3 kg (models with battery)
Working Temperature	-10 °C to +60 °C
Humidity	95% RH non-condensing
Protection Class	IP67 (case closed)
Scope of Supply	CIBRE-L3 device, 6m Contact Cable, 10m Contact Extension Cable, 1m Initiate Cable, 5m Initiate Extension Cable, 1m External Trigger Cable, 5m External Trigger Extension Cable, Power Cord, Ground Cable, USB Cable, Printer Paper (2x), USB Flash Drive, Instruction Manual (soft copy), Soft Carry Bag
Ordering Information	CIBRE-L3, 3-Contact Circuit Breaker Timer with Built-in Printer
	CIBRE-L3 BLUE, 3-Contact Circuit Breaker Timer with Built-in Bluetooth & Printer
	CIBRE-L3B, 3-Contact Circuit Breaker Timer with Built-in Battery & Printer
	CIBRE-L3B BLUE, 3-Contact Circuit Breaker Timer with Built-in Battery, Bluetooth & Printer
