CheckSource 2.3

The CheckSource 2.3 is a three-phase current source for currents up to 6 A. The test currents are generated with the same frequency and a user-defined phase shift to the voltages applied to the voltage inputs (phantom load). Alternatively the test currents can also be generated with a user defined frequency.

SKU: CheckSource-2.3 Category:
Technical information for CheckSource 2.3
Power Supply: 88 VAC/DCmin … 264 VAC/DCmax (Operation)
88 VAC/DCmin … 440 VAC/DCmax (Protection)
Power Consumption:  50 VA (typical)
 65 VA (maximum)

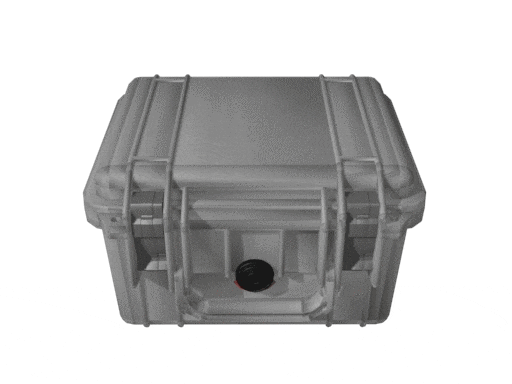

Housing: Hard plastic housing
(W x H x D)
273 mm x 178 mm x 247 mm (housing closed)
Weight:  5 kg (excl. accessories)
Voltages Synchronization: 10/17 V … 300/520 V
Temperature: -10°C … +50°C (Operation)
-20°C … +60°C (Storage)
Operation Frequency: 45 Hz … 65 Hz
