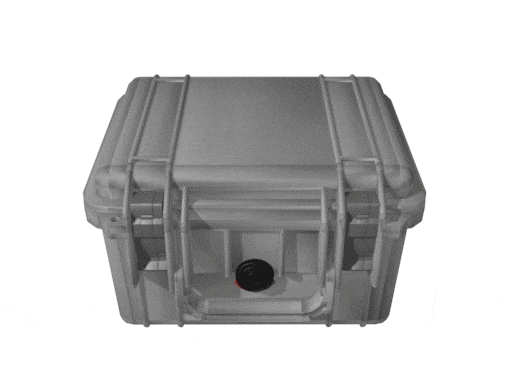

CheckSystem 2.1 S

The CheckSystem 2.1 S portable test system consists of an integrated single-phase 120 A current source unit and a single-phase electronic reference standard available in accuracy class 0.05.

SKU: CheckSystem-2.1-S Category:
Technical information for CheckSystem 2.1 S



Auxiliary power supply: Power may be taken from the auxiliary supply
or the measuring circuit at:
88 VACmin … 264 VACmax / 47 … 63 Hz
125 VDCmin … 372 VDCmax
Protection: up to 440VACmax
Voltages    Operation: 10 V … 480 V
Voltages    Synchronisation: 10 V … 480 V
Power consumption: max. 150 VA
Housing: Hard Plastic
Dimensions: W 273 x H 247 x D 178 mm
Weight: approx. 5.6 kg
Operation temperature: -10 °C … +50 °C
Storage temperature: –20 °C … +60 °C
Relative humidity ≤ 85% at Ta ≤ 21°C
≤ 95% at Ta ≤ 25°C, 30 days / year spread
