eMOB I-200.1 DC

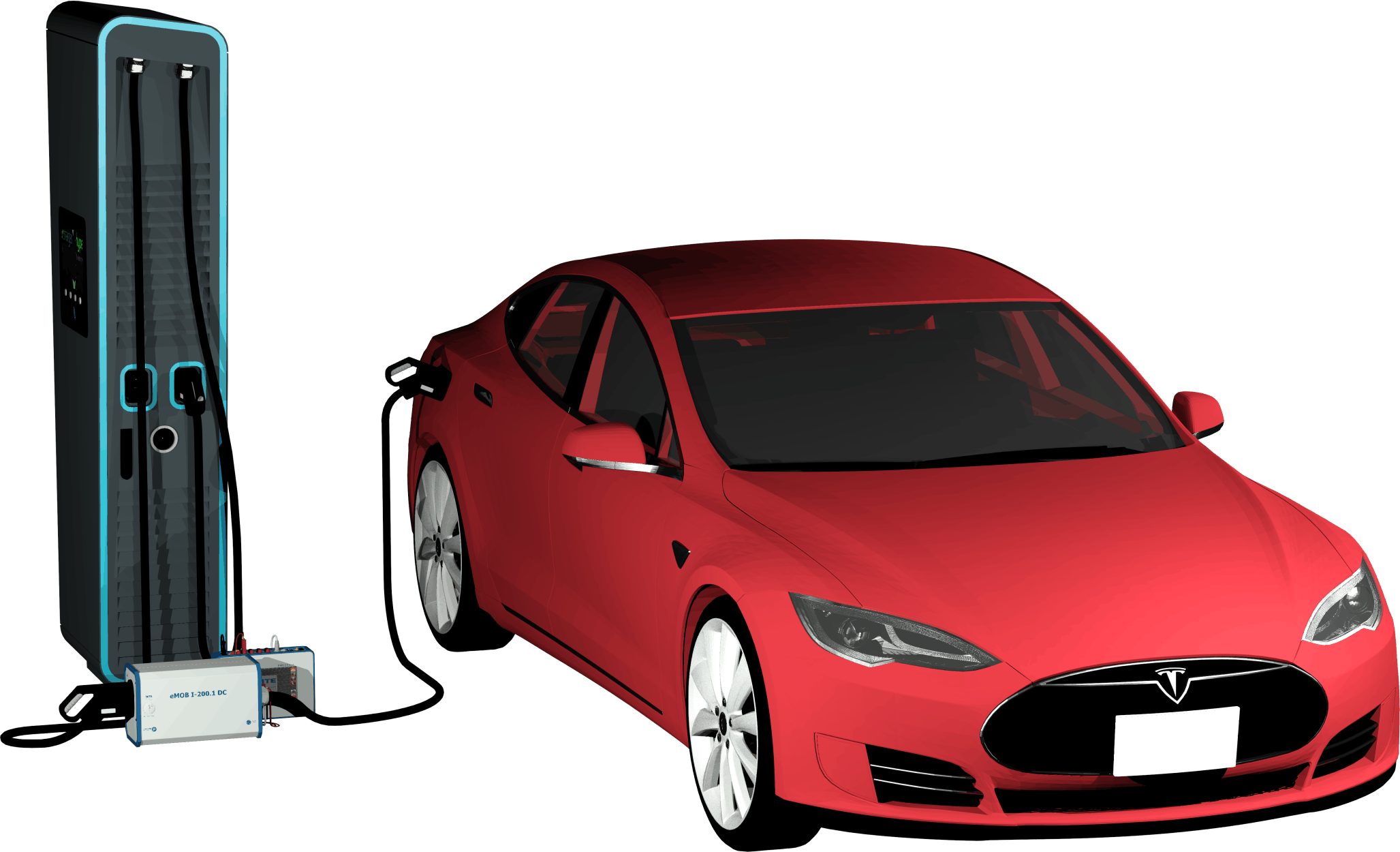

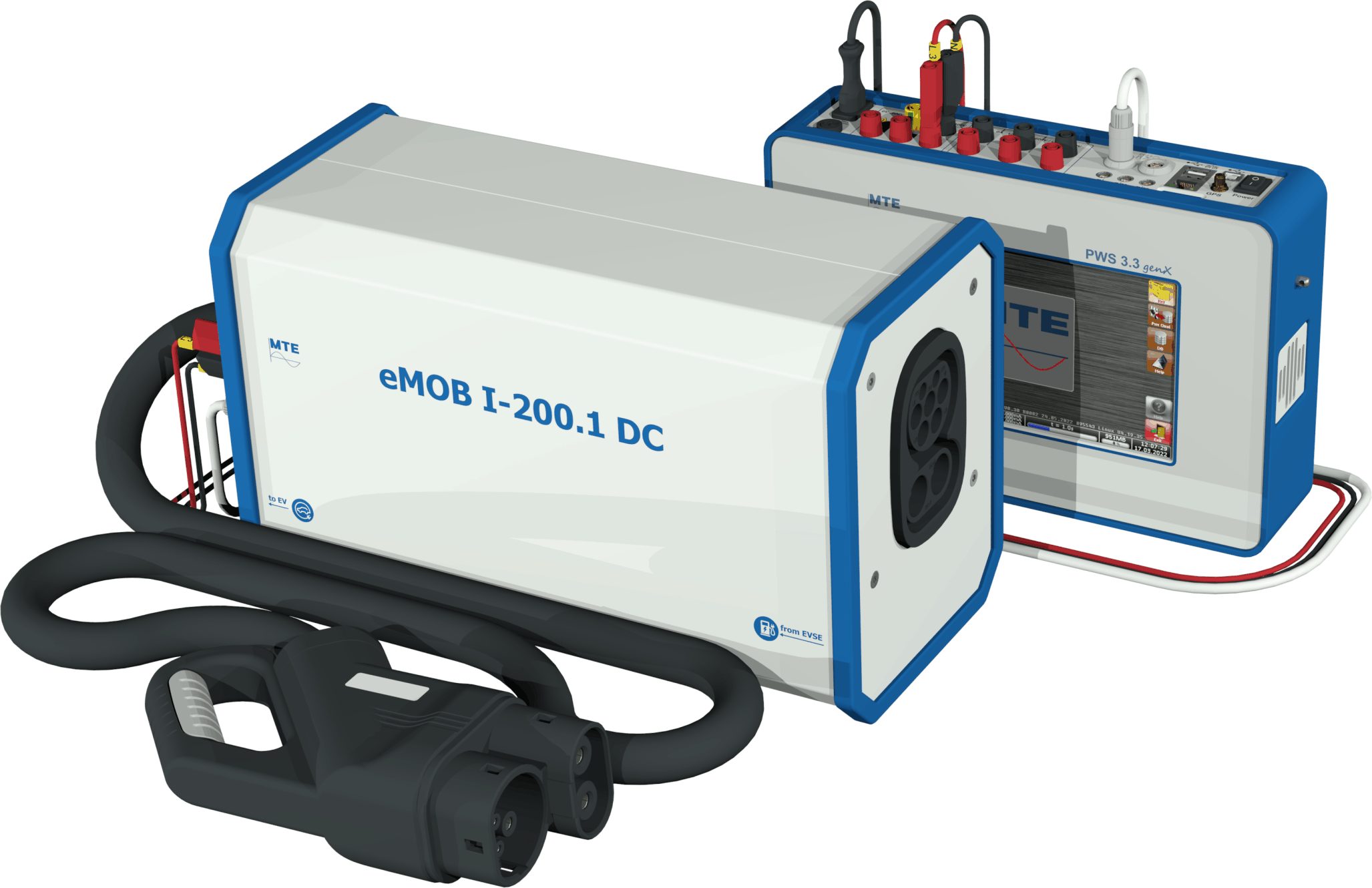

The new eMOB I-200.1 DC test adapter enables in combination with the PWS 3.3 genX Portable Working Standard a comprehensive on-site test of DC charging stations for electric vehicles.

View Datasheet
SKU: eMOB-I-200.1-DC Category:
Technical information for eMOB I-200.1 DC



Power supply: Power may be taken from the CT-Inputs of the Metering device:
U = ± 18 VDC
U = 3.3V DC
Power consumption: max. 18 W
Housing: Hard Plastic
Dimensions: L 390 x W 180 x H 230 mm
Weight: approx. 7.45 kg
Operation temperature: -10 °C … +50 °C
Storage temperature: -20 °C … +60 °C
Relative humidity: ≤ 85% at Ta ≤ 21°C
≤ 95% at Ta ≤ 25°C, 30 days / year spread
Connection: CCS Type 2 inlet and cable with CCS plug
(IEC 62196-3)
