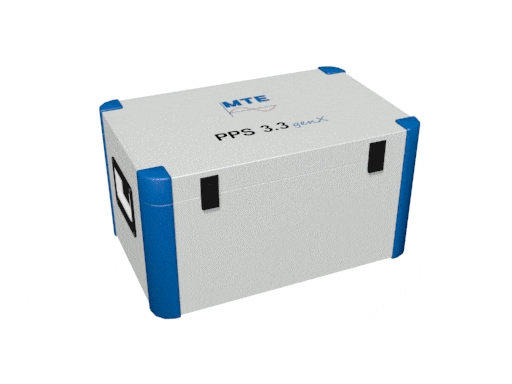

PPS 3.3 genX

The PPS 3.3 genX is a powerful and portable three-phase current and voltage source. All test values are generated absolutely synthetically with a high degree of accuracy and stability.

SKU: PPS-3.3-genX Category:
Technical information for PPS 3.3 genX



Auxiliary power supply: 88 VACmin … 264 VACmax / 47 … 63 Hz
Protection: Switch off supply at > 276 VAC
Power consumption: max. 500 VA
Housing: Hard Plastic
Dimensions: W 470 x D 320 x H 253 mm
Weight: approx. 23 kg
Operation temperature: -10 °C … +50 °C
Storage temperature: -20 °C … +60 °C
Relative humidity: ≤ 85% at Ta ≤ 21°C
≤ 95% at Ta ≤ 25°C, 30 days / year spread
