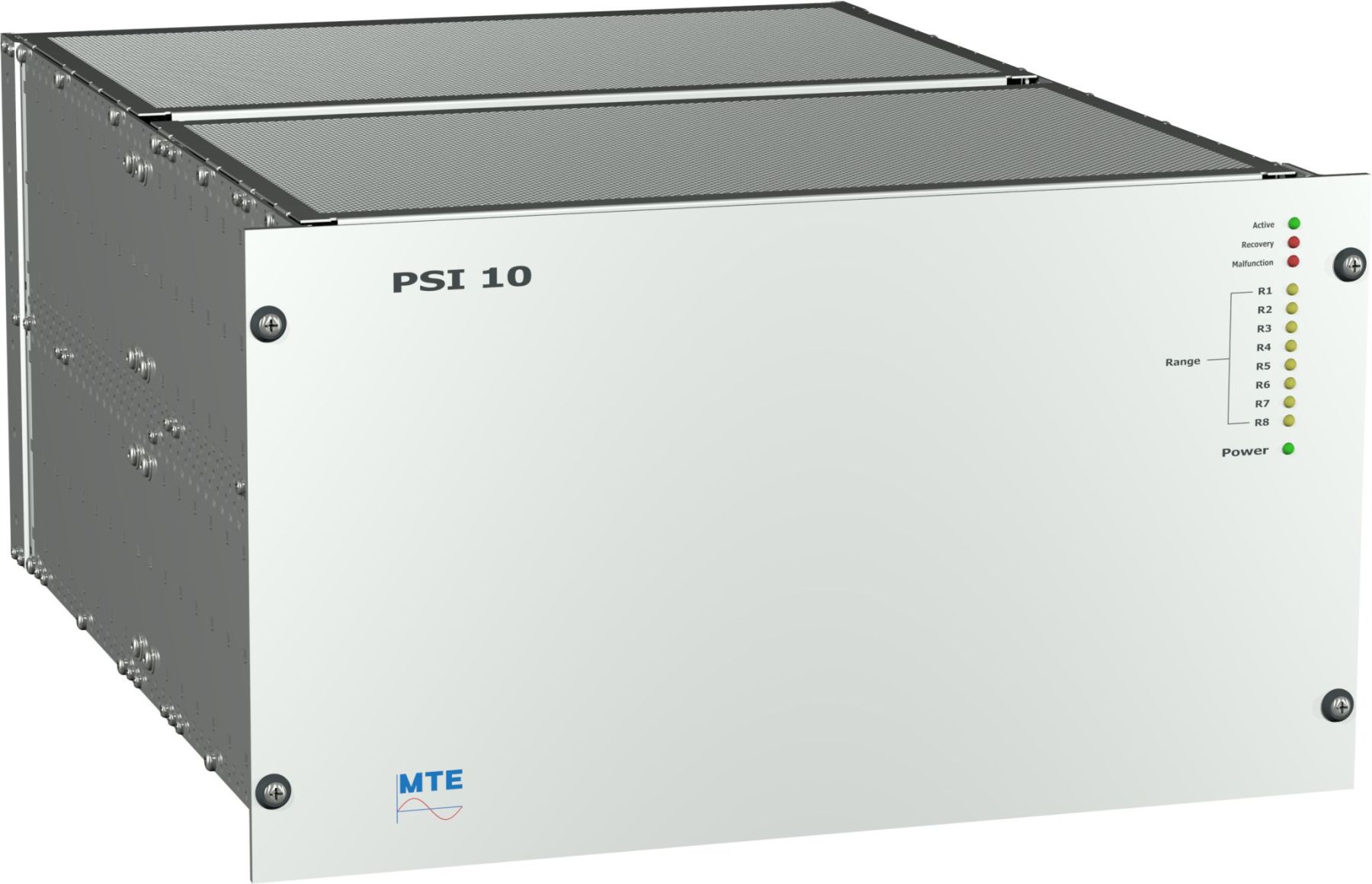

PSI 10 / 200 A

The PSI 10 / 200 A is a single-phase, computer controlled current source up to 200 A for use in meter test systems and in laboratories.

SKU: PSI-10-/-200-A Category:
Technical information for PSI 10 / 200 A



PSI 10 / 1000 VA

Supply voltage: 3×230 / 400 V ±15 %
50 / 60 Hz ±15 %
Power consumption (max): 1200 W (1700 VA)
Housing: 19”-Plug-in unit
Dimensions (complete Device): W483 x H265 x D600 mm
Weight: 15 kg
Current range: 1 mA … 200 A

PSI 10 / 2000 VA

Supply voltage: 3×230 / 400 V ±15 %
50 / 60 Hz ±15 %
Power consumption (max): 2300 W (3400 VA)
Housing: 19”-Plug-in unit
Dimensions (complete Device): W483 x H265 x D600 mm
Weight: 25 kg
Current range: 1 mA … 200 A

PSI 10 / 4000 VA

Supply voltage: 3×230 / 400 V ±15 %
50 / 60 Hz ±15 %
Power consumption (max): 4600 W (6800 VA)
Housing: 19”-Plug-in unit
Dimensions (complete Device): W483 x H265 x D600 mm
Weight: 35 kg
Current range: 1 mA … 200 A
