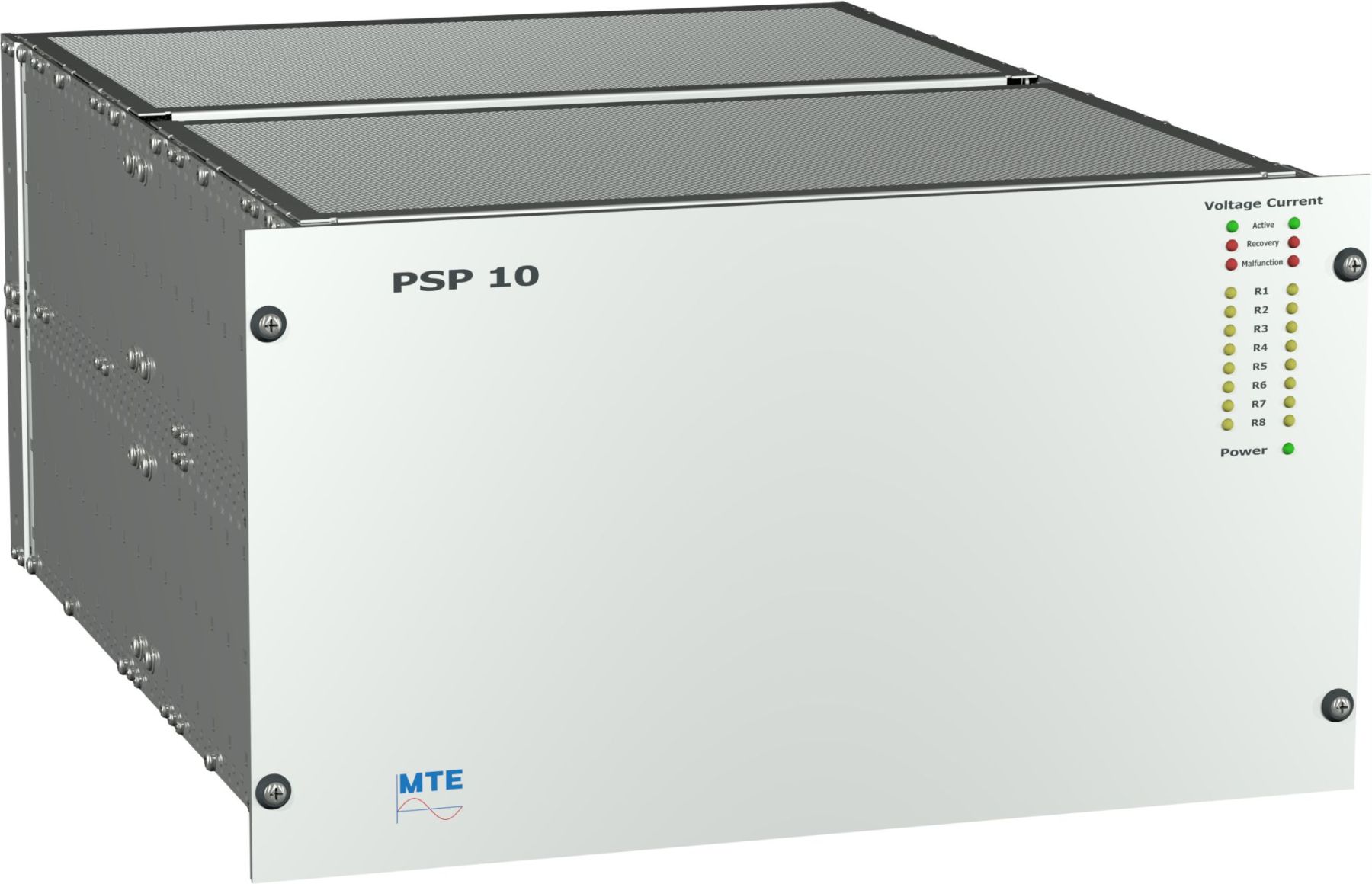

Technical information for PSP 10
| Supply voltage: | 3×230 / 400 V ±15 % 50 / 60 Hz ±15 % |
| Power consumption (max): | 2.4 kW (3.5 kVA) |
| Housing: | 19”-Plug-in unit |
| Dimensions (complete Device): | W485 x H265 x D600 mm |
| Weight: | approx. 70 kg |
| Voltage range: | Phase – Neutral / 30 … 300 V |
| Current range: | 1mA … 120A |
