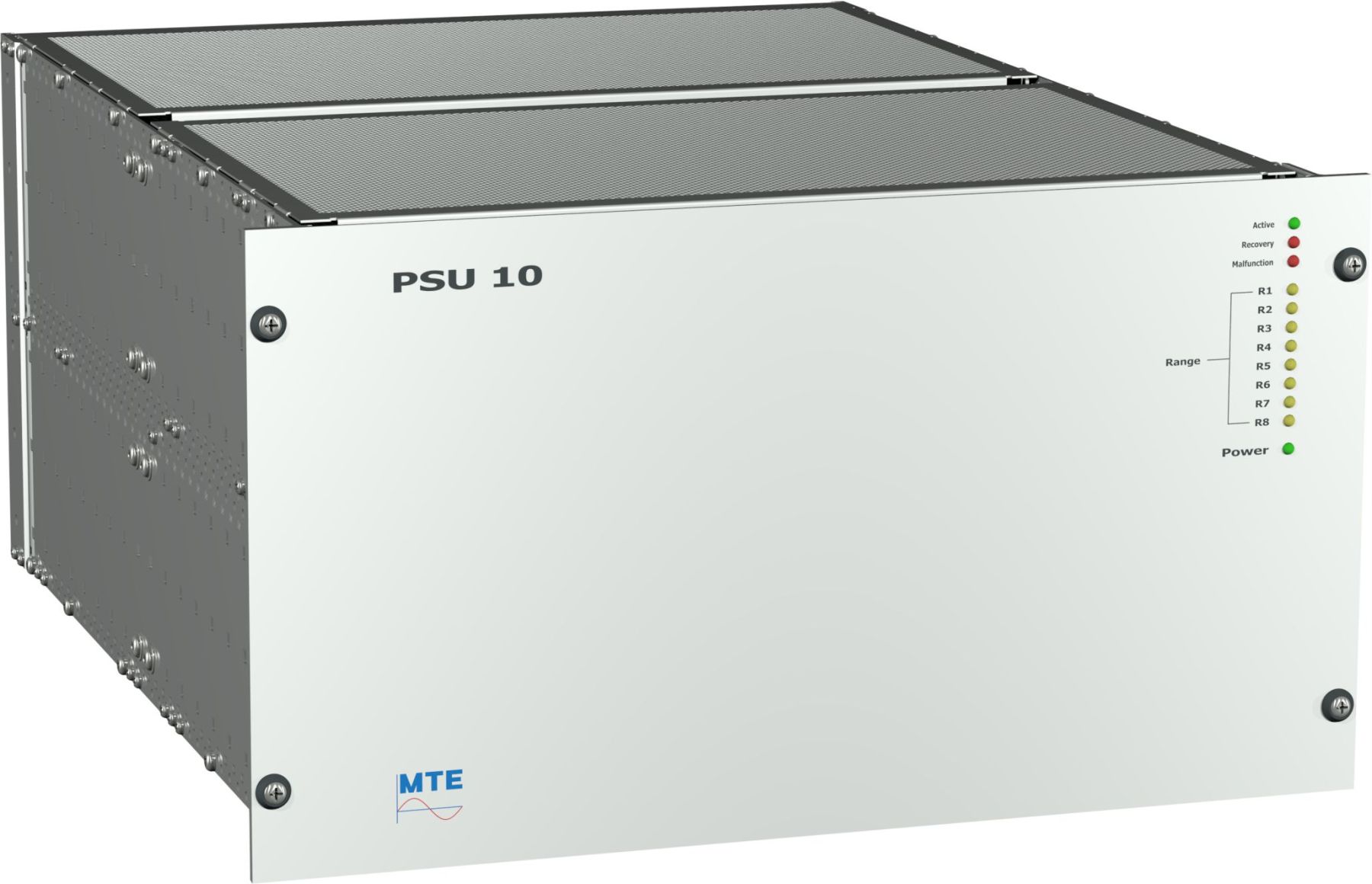

Technical information for PSU 10
PSU 10 / 1000 VA
| Supply voltage: | 3×230 / 400 V ±15 % 50 / 60 Hz ±15 % |
| Power consumption (max): | 1200 W (1700 VA) |
| Housing: | 19”-Plug-in unit |
| Dimensions (complete Device): | W483 x H265 x D600 mm |
| Weight: | 15 kg |
| Voltage range: | 30 V … 300 V |
PSU 10 / 2000 VA
| Supply voltage: | 3×230 / 400 V ±15 % 50 / 60 Hz ±15 % |
| Power consumption (max): | 2300 W (3400 VA) |
| Housing: | 19”-Plug-in unit |
| Dimensions (complete Device): | W483 x H265 x D600 mm |
| Weight: | 25 kg |
| Voltage range: | 30 V … 300 V |
PSU 10 / 4000 VA
| Supply voltage: | 3×230 / 400 V ±15 % 50 / 60 Hz ±15 % |
| Power consumption (max): | 4600 W (6800 VA) |
| Housing: | 19”-Plug-in unit |
| Dimensions (complete Device): | W483 x H265 x D600 mm |
| Weight: | 35 kg |
| Voltage range: | 30 V … 300 V |
