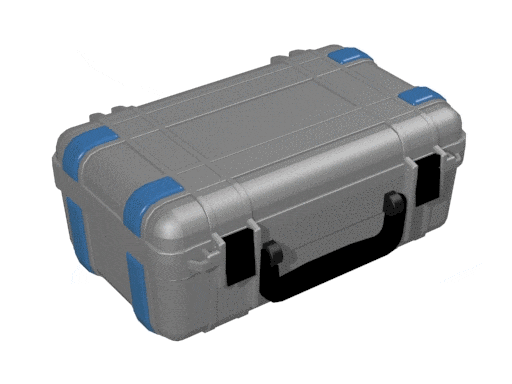

PTS 2.3 genX

The PTS 2.3 genX portable test system consists of an integrated three-phase current source unit and a three-phase electronic reference standard of accuracy class 0.1. Characteristic features of the PTS 2.3 genX are its wide measuring range, high accuracy and high tolerance to unwanted external influences.

SKU: PTS-2.3-genX Category:
Technical information for PTS 2.3 genX



Auxiliary power supply: Power may be taken from the auxiliary supply
or the measuring circuit at:
88 VACmin … 264 VACmax / 47 … 63 Hz
Protection: Switch off supply at > 276 VAC
Power consumption: max. 400 VA
Housing: Hard Plastic
Dimensions: W 450 x D 297 x H 188 mm
(inclusive rubber protection
Weight: approx. 14.5 kg
Operation temperature: -10 °C … +50 °C
Storage temperature: –20 °C … +60 °C
Relative humidity ≤ 85% at Ta ≤ 21°C
≤ 95% at Ta ≤ 25°C, 30 days / year spread
