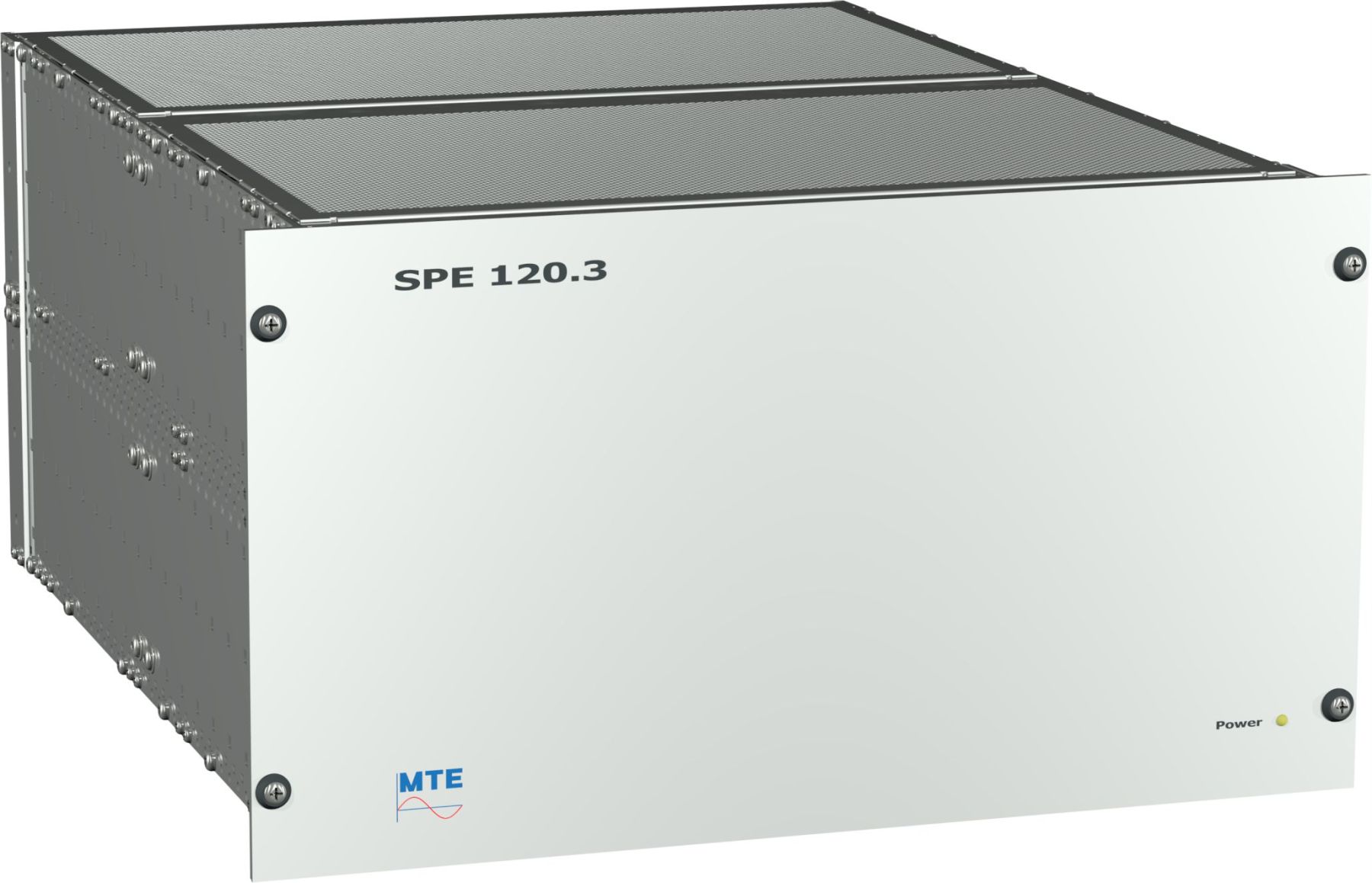

SPE 120.3 / 120 A

The SPE 120.3 is a three-phase, computer controlled voltage and current source with 300 or 600 VA for use in meter test systems and in laboratories.

SKU: SPE-120.3-/-120-A Category:
Technical information for SPE 120.3 / 120 A



SPE 120.3 / 300 VA

Supply voltage: 3×230 / 400 V ±15 %
50 / 60 Hz ±15 %
Power consumption: 2.2 kW (3.5 kVA)
Dimensions (complete Device): W485 x H270 x D600 mm
Weight: approx: 50 kg
Voltage source: Phase – Neutral / 30 … 300 V
Current source: 1mA … 120A

SPE 120.3 / 600 VA

Supply voltage: 3×230 / 400 V ±15 %
50 / 60 Hz ±15 %
Power consumption: 4.0 kW (6.8 kVA)
Dimensions (complete Device): W485 x H400 x D600 mm
Weight: approx: 70 kg
Voltage source: Phase – Neutral / 30 … 300 V
Current source: 1mA … 120A
