PRS 600.3

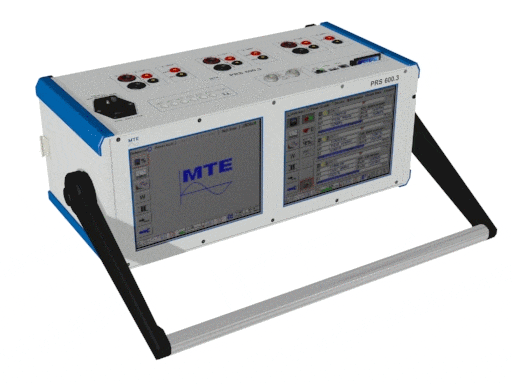

The PRS 600.3 is a combination of a three-phase Portable Reference Standard of accuracy class 0.02 and an IEC 61000-4-30 Class A compatible Power Quality Analyzer with 3 voltage and 3 current channels. The device is equipped with two 8.4” colours TFT VGA displays based on touch screen operation.
Technical information for PRS 600.3
| Auxiliary supply: |
88VACmin … 264 VACmax |
| Power consumption: | max. 85 VA |
| Housing: | Hard Plastic |
| Dimensions: | W 510 x H 182.5 x D 227.5 mm |
| Weight: | approx. 10 kg |
| Operation temperature: | -10 °C … +50 °C |
| Storage temperature: | –20 °C … +60 °C |
| Relative humidity | ≤ 85% at Ta ≤ 21°C ≤ 95% at Ta ≤ 25°C, 30 days / year spread |
