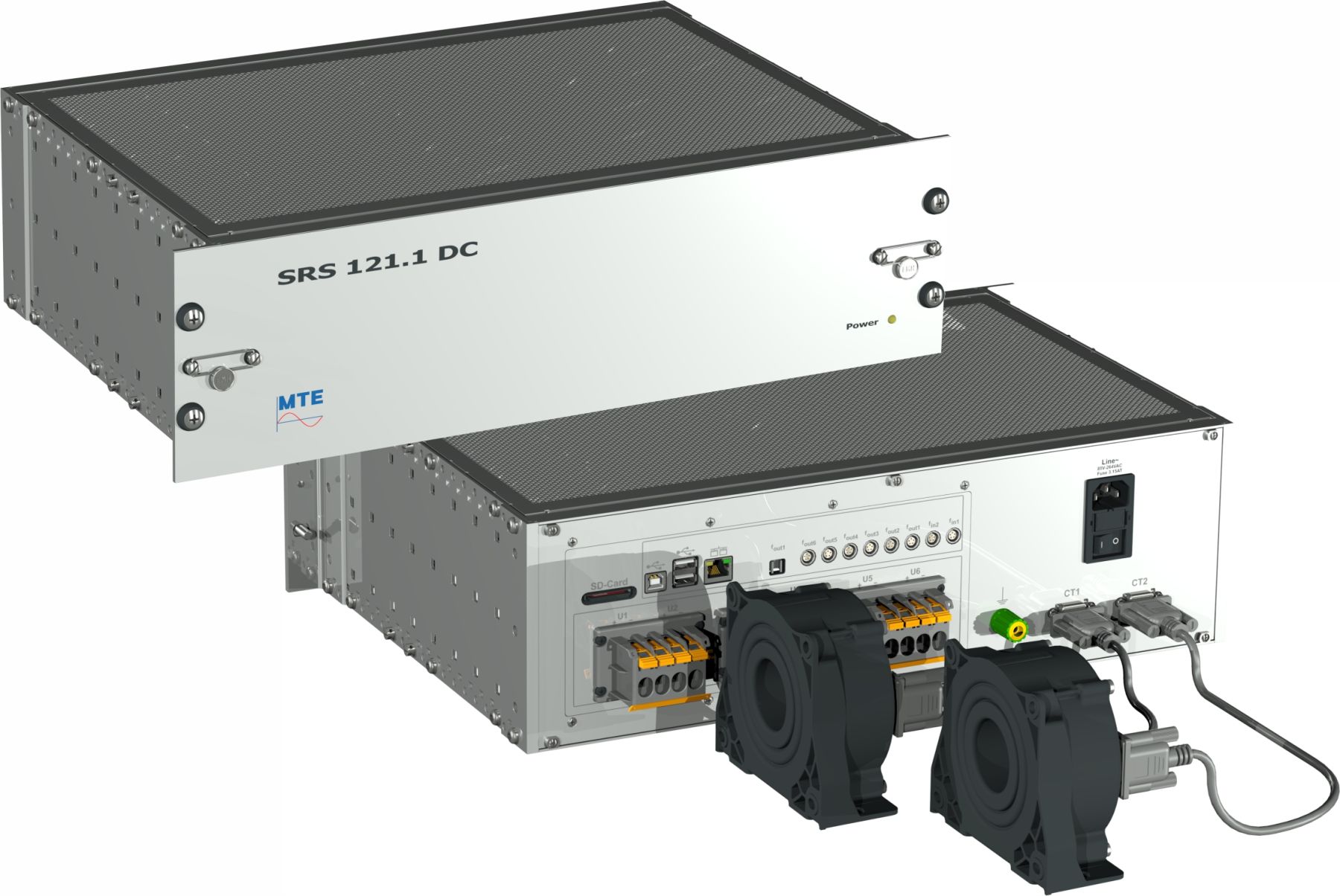

SRS 121.1 DC

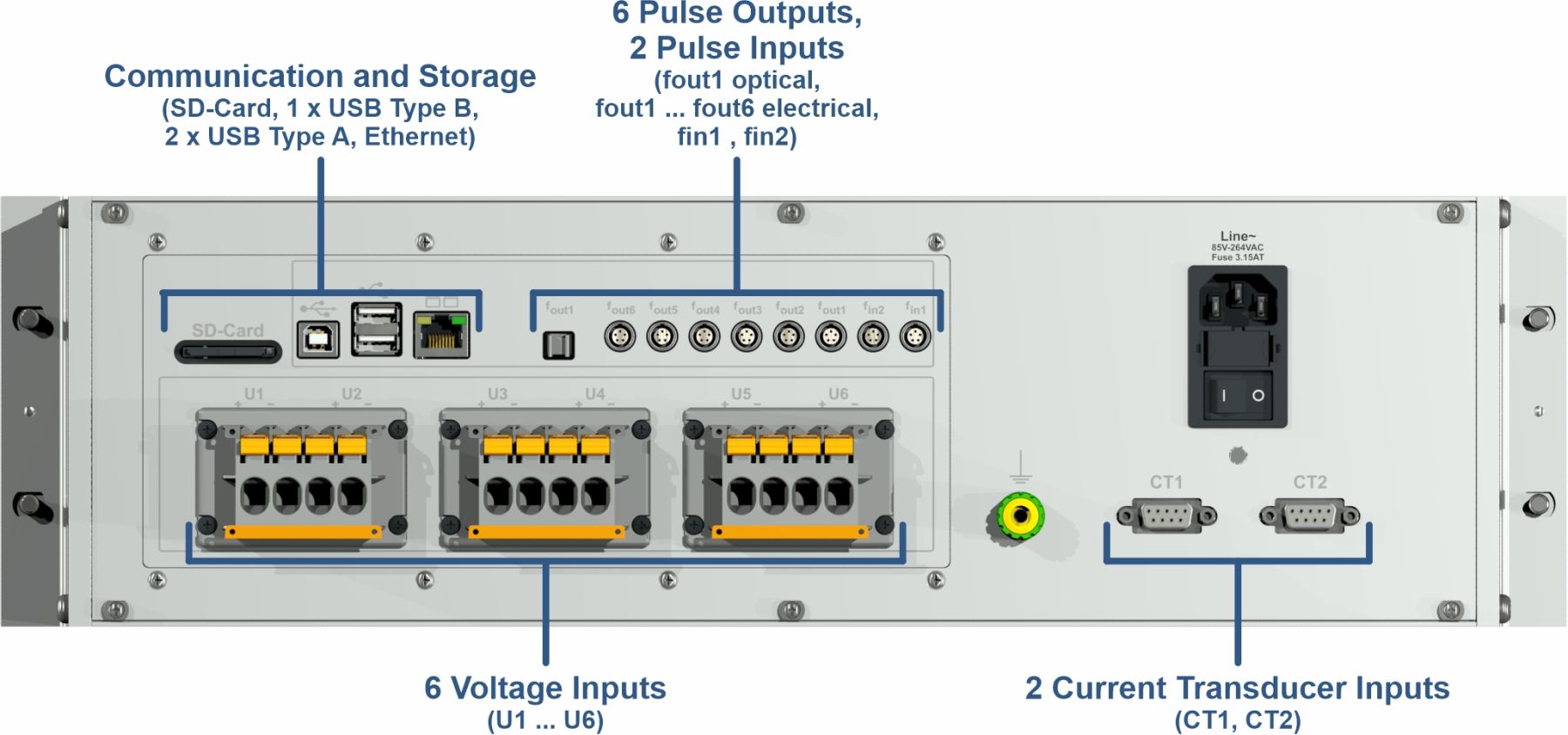

The SRS 121.1 DC is a 6-channel single-phase reference standard for DC power/energy class 0.04 for verification of 1 up to 6 DC Meters or DC Energy Measuring Units of EVSE (Electric Vehicle Supply Equipment) at the same time.

SKU: SRS-121.1-DC Categories: ,
Technical information for SRS 121.1 DC



Auxiliary power supplye: 88 VACmin … 264 VACmax / 47 … 63 Hz
125 VDCmin … 373 VDCmax
Power consumption: max. 45 VA
Housing: 19” plug-in unit
Dimensions: W 483 x D 133 x H 326 mm
Isolation protection: IEC 61010-1:2010
Measurement Category: 1000 VDC CAT III (1500 VDC CAT II)
Degree of protection: IP-20
