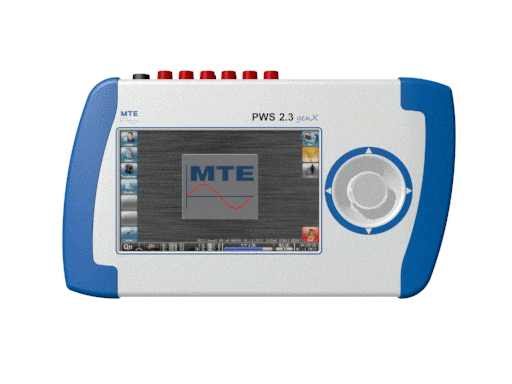

PWS 2.3 genX

The PWS 2.3 genX Portable Working Standard is a three-phase portable electronic meter test unit of accuracy class 0.1, used for testing single and three-phase electricity meters on site. The PWS 2.3 genX allows checking of all meter installation parameters and associated circuits.

SKU: PWS-2.3-genX Categories: ,
Technical information for PWS 2.3 genX



Auxiliary power supply:

Power may be taken from the auxiliary supply or the measuring circuit at:
46 VACmin … 300 VACmax, 47 Hz … 63 Hz
65 VDCmin … 423 VDCmax
Protection: up to 440 VACmax
External 12 V DC supply:

10 VDCmin … 14.4 VDCmax
Frequency range:

47 Hz … 63 Hz
Power consumption: max. 15W / 30 VA
Housing: Hard Plastic
Dimensions: W 308 x H 173 x D 70 mm
Weight: approx. 1.5 kg
Operation temperature: -10 °C … +50 °C
Storage temperature: –20 °C … +60 °C
Relative humidity ≤ 85% at Ta ≤ 21°C
≤ 95% at Ta ≤ 25°C, 30 days / year spread
