SH 11

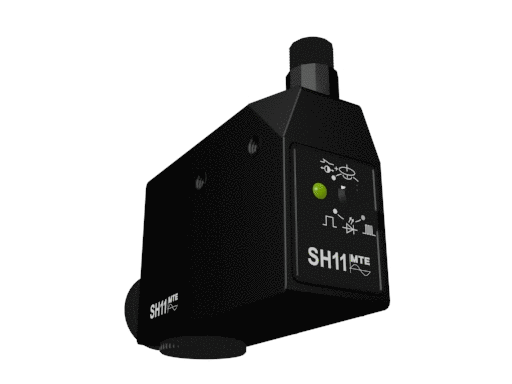

The SH 11 universal scanning head is suitable for scanning the marks of mechanical rotating disc meters or the detection of light emitting diodes (LED’s) of electronic meters plus simulated pulses on LCD displays. Mode of operation is selectable via a switch.

SKU: SH-11 Category:
Technical information for SH 11



Power Supply
Supply voltage: Us = 10 – 30 V DC
Housing: Metal
Weight: approx. 300 g
Dimensions:
Width x Height x Depth		 30 x 73 X 103 mm
Ambient temperature: -10 … +55 °C
Output signal OUT
Output switching: NPN
Output voltage HIGH: Us
Output voltage LOW: < 2 V
Output current: < 100 mA, protected against short circuits
Output load: max. 22 nF
Output impedance: 8.25 kΩ (Pull-up resistor)
