SH 2003

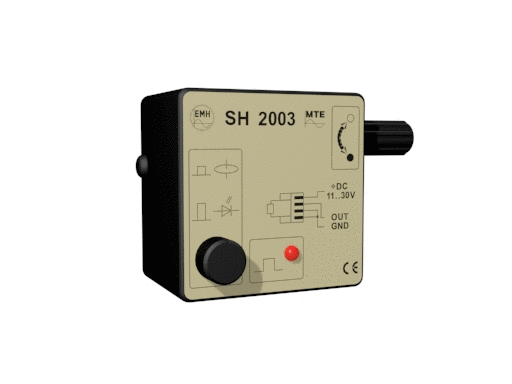

The SH 2003 photoelectric scanning head is suitable for scanning the marks of mechanical rotating disc meters or the detection of light emitting diodes (LED’s) of electronic meters. Mode of operation is selectable via a switch.

SKU: SH-2003 Category:
Technical information for SH 2003



Supply voltage: 11 – 30 V DC
Housing: Hard Plastic
Weight: approx. 30 g
Dimensions:
Width x Height x Depth		 40 x 57.75 X 34.5 mm
Max. current consumption: < 30 mA (Without output load at disk mark scanning)
Max. current consumption: ca. 5 mA (Without output load at LED scanning)
Output impedance Ra: ca. 470 Ω (At high and low level)
Max. output voltage: 9.5 – 28.5 V (Depending on supply voltage)
